Function introduction:
1) Arming and disarming by keychain remote control
2) Long distance remote control by any telephone
3) Remote control of the home electrical appliances by telephone
4) Live feeding record and listening by telephone
5) Alarm reporting on illegal entries by PIR detector and magnetic door
switches
6) Alarm siren buzzing to warn for illegal intrusion or possible intrusion
7) Toxic gas leaking alarm
8) Toxic gas leaking alarm
9) Emergency help alarm
9) Auto-dialing to preset phone numbers for alarm notification
11) Monitoring service option by central monitoring station
Features
1) Easy installation and simple operation
2) Tampers proof system on telephone line being cut
3) Priority calling when alarm triggered
4) Real time record on central monitoring system
5) Press the emergency help button on the keychain remote control to trigger
the siren immediately
6) Saved data will be retained when power failure
7) Identifying alarm event by phone, such as illegal entry, fire-alarm or gas leak
8) Link with central monitoring station through telephone line
9) Add new accessories with auto-setting code
10) Total 128 units of sensors or detectors can be matched
Specifications:
1) Supply voltage: 9 -12V DC
2) Arming current: 14mA
3) Disarming current: 13mA
4) Silent alarming current: 25mA
5) Sound alarm current: 260mA
6) dB output: 110dB
7) Operation frequency: 315MHz±0.2MHz
8) RF sensitivity: -105dBm
9) Temperature: -10-+50C
10) Relative humidity: <95%
11) Dimensions (L x W x H): 144 x 143 x 43mm

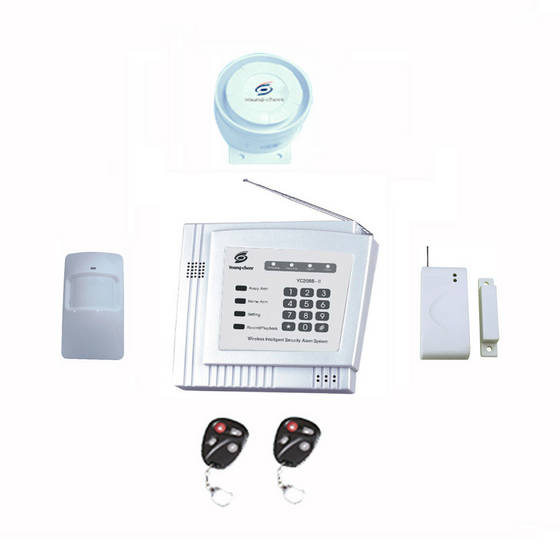

12) Basic contents: 1 unit of control panel, 2 units of remote controllers, 1 unit
of wireless magnet door sensor, 1 unit of wireless PIR detector, 1 unit of siren,
1 unit of AC adapter, 1 unit of telephone cable
Inner packing:
Color box dimensions: 33.8 x 25.5 x 6.8cm
Outer packing:
Carton dimensions: 58 x 36 x 55cm
16sets/ctn
